Product Details

13A 3S 12V 18650 battery protection board BMS11.1V

MPN :

SKU : 3SBPB13A-Q126

Brand :Megatronics.pk

Stock : Out of Stock

Price:PKR 400.00

3S 12V 18650 lithium battery protection board 11.1V 12.6V 13A anti-overcharge and over discharge limit protection

3S (three 18650 batteries or lithium polymer series combination)

10.8V (polymer battery rated voltage)
11.1V (18650 or 3.7V lithium battery rated voltage)
12.6V (Li-ion battery fully charged voltage)
Discharge 15A (refers to the maximum discharge current limit)
Lithium battery protection board
Comes with: overcharge, over discharge, over current, short circuit protection
18650 lithium batteries necessary

The main IC uses "Seiko" imported components. Overcharge, over discharge, over current, short circuit protection, used in various capacities in various shapes 3.7V lithium batteries. Japan Seiko protection IC, VISHAY, AOS, IR and other high-quality MOSFET, FR-4

low temperature coefficient of the plate, well-designed, comprehensive testing. Compact, suitable for many demanding high-integration, low cost applications, to meet the wide range of performance requirements, to ensure absolutely safe and reliable battery pack.

The lithium battery protection board attributes:

Model: HX-3S-D02 charging voltage range: 4.25-4.35v - 0.05v
Size: 53 x 16 x 4.0mm over-discharge voltage range: 2.3-3.0v - 0.05v
Maximum operating current: 9A Operating Temperature: -40 to 50C
Maximum instantaneous current: 10-15A storage conditions: -40 to 80C
Static current: less than 50uA active life: more than 30,000 hours
Resistance: less than 100mO short-circuit protection: protect, delay self-recovery.

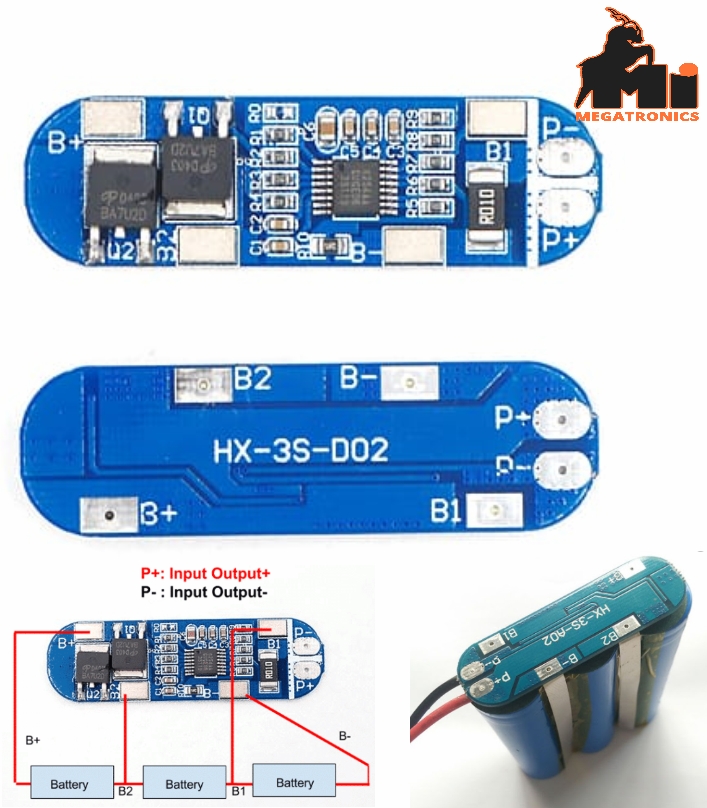

The protective plate size and device description;
The protective plate size is 53 x 16 x 4mm; Component Seiko S-8254AA protect the chip and the genuine AOS D403 x 2 Ge
