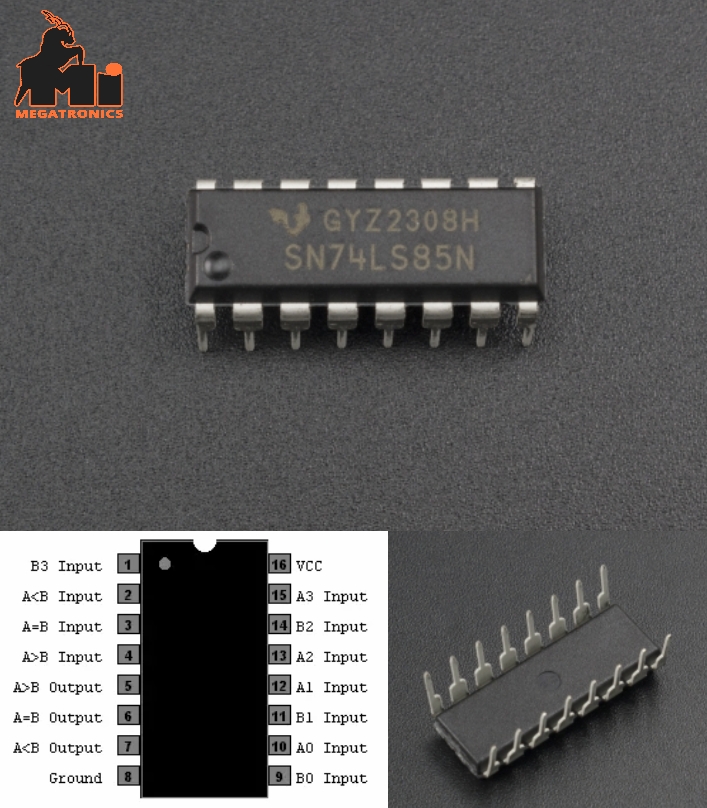

74LS85 DIP16 Through 4 Bit Magnitude Comparator digital logic gates 4-bit compar
MPN :
SKU : 74LS85-K201S8
Brand :Megatronics.pk
Stock : 498pcs
Price:PKR 80.00
74LS85 DIP16 Through 4Bit Magnitude Comparator digital logic gates 4-bit comparator
The SN54/74LS85 is a 4-Bit Magnitude Comparator that compares two 4-bit words (A, B), each word having four Parallel Inputs (A0-A3, B0-B3); A3, B3 being the most significant inputs.
Comparator type : Magnitude
Number of bits : 4 bit
Logical function : A < B, A = B, A > B
Output type : Active High
Supply voltage - Max. : 5.25 V
Supply voltage - Min. : 4.75 V
Supply current - Max. : 20 mA
Maximum working temperature : + 70 C
Propagation delay time : 45 ns
Mounting style : Through Hole
Package/Cover : PDIP-16
Operating supply voltage : 4.75V to 5.25V
Polarity : Non-Inverting
