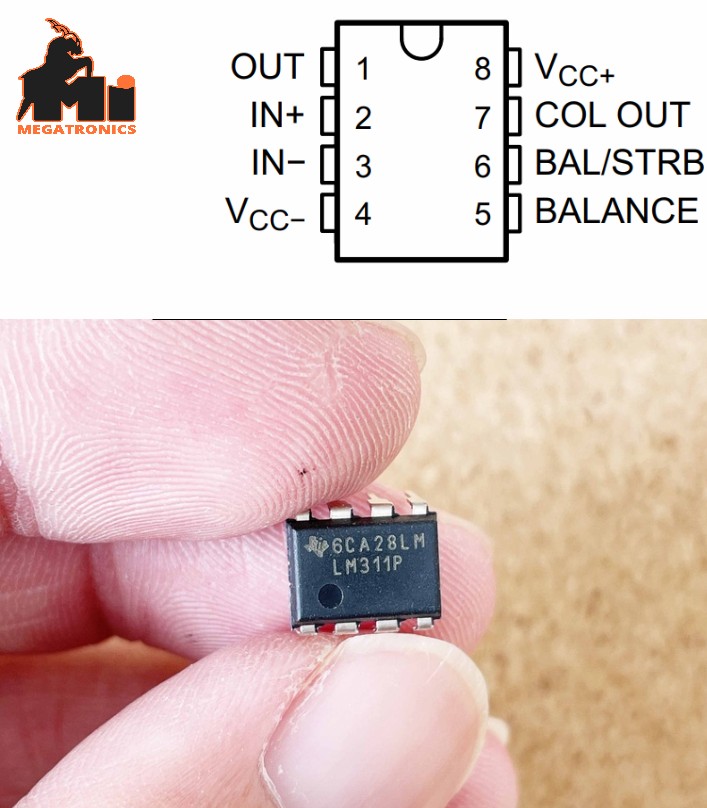

LM311P LM311 DIP-8 Differential voltage Comparator IC


LM311 are single high speed voltage comparators. These devices are designed to operate from a wide range of power supply voltages, including ±15 V supplies for operational amplifiers and 5 V supplies for logic systems. Output levels are compatible with most TTL and MOS circuits. These comparators can drive lamps or relays and have switching voltages up to 50 V at 50 mA. All inputs and outputs can be isolated from system ground. Outputs can drive loads referenced to ground, VCC+ or VCC-. Offset compensation and flash capabilities are available and the outputs can be wired OR connected. If strobe is low, the output is off regardless of the differential input.

Usage Areas
Desktop computers
Body Control Modules
White goods
Building automation
Oscillators
Peak Detectors


Supply Voltage 3.5V - 30V, ± 1.75V - 15V
Supply Current 5.1mA
Output Type DTL, MOS, Open Collector, Open Transmitter, RTL, TTL
Number of Comparators 1
Package Type DIP-8
