57 Integrated Stepper Motor with Closed Loop 2Nm Hybrid Servo Motor Driver DC24~50V Motor Controller Encoder with Serial Cable for CNC Control


Closed Circle Motor: A step-by-step closed circuit system can improve engine performance at the moment of power and speed without losing motion synchronization.
Advanced technology and stable performance: adopt the advanced 32-bit chip for digital signal processing with special motor control and vector control technology. The motor runs quietly and the vibration is low, which improves dynamic performance in acceleration and braking.
Good ability and safe protection: static capability with 0 speeds without vibration after the positioning is complete. Support over-current protection, over-voltage protection, position over tolerance protection.
Adjustment for better use: adjust the current according to the load to reduce the engine temperature rise. Suitable for various mechanical load conditions (including low stiffness pulleys and pullies) without adjusting the gain parameters.
Easy control and safe operation: built-in position and alarm output signals for easy monitoring and control of the PC. The position tolerance alarm function guarantees safe operation of the processing equipment.


Specification:
Condition: 100% brand new.
Engine model: 57HSE2N-D25.
Material: carbon steel + copper.
Power supply: DC24 ~ 50 V.
Maximum output current 6.0 A (varies depending on load)
Logic input current: 7~20mA
Pulse rate: 0 ~ 200 kHz.
Suitable motor: 57HSE
Encoder line: 1000.
Insulation resistance: 500 MO.
Cooling method: natural cooling or using an external heat sink
Working conditions:
Avoid dust, oil mist and corrosive agents.
Temperature: 0 ~ 50 °C.
Humidity: 40-90% RF
Vibration: 5.9 meters/s2Max.
Storage temperature: 0 ~ 50 °C.
Motor the moment of power: 2 N.m.
Rated current: 4 A.
Shank: 8 mm.
Maximum speed: 2000 rpm.
Rated speed: 1000 rpm.
Pulse response frequency: 200kHz
Maximum 51200 steps/rotation 16 optional segments.

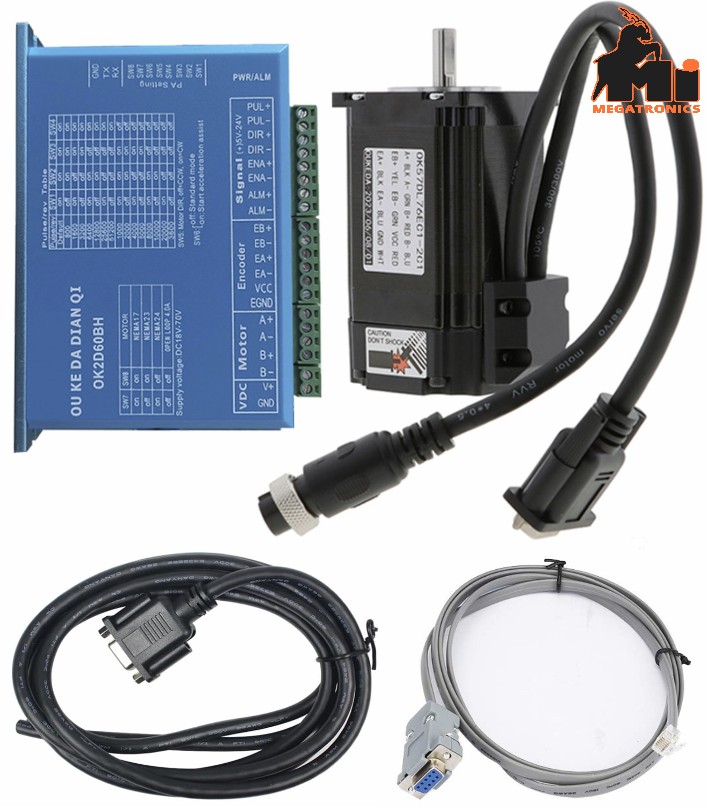

Package list:
1 x drive.
1 x stepper motor.
2 x connecting cables.
1 x user manual.
