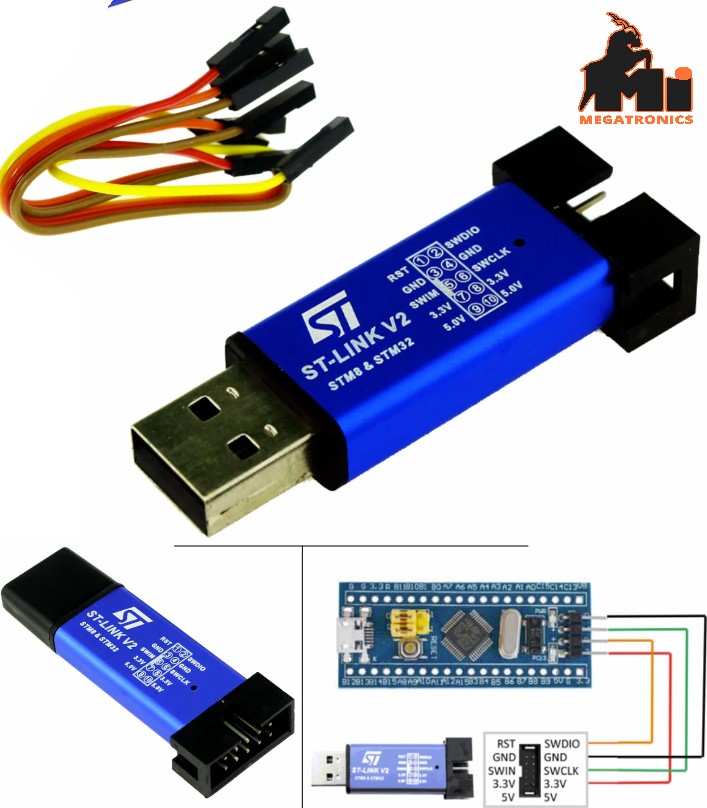

 ST-Link V2 Programmer For STM8 STM32 emulator debugger Metallic Case
ST-Link V2 Programmer For STM8 STM32 emulator  debugger Metallic Case
MPN :
SKU : STLINK2-G112
Brand :Megatronics.pk
Stock : 30pcs
Price:PKR 500.00
ST-Link V2 Programmer For STM8 STM32 emulator  debugger Metallic Case


Programmer/Debugger For: STM8 and STM32
SWD and serial wire viewer (SWV) communication support
Status LED blinking during the communication with the PC
Output Voltage: 3.3V/5V
Interface definition directly marked on the shell
Internal motherboard with 500MA fuse for self-recovery
Direct firmware update support (DFU)
Operating temperature from 0 °C to 50 °C


The ST Link V2 Programmer is designed for STM8 and STM32 and is manufactured with PCB installed inside of aluminum alloy U disk shell. This factory firmware ST Link V2 programmer has been upgraded to support the full range STM32 SWD and a full range STM8 SWIM. STLink V2 support the full range of STM32 SWD debugging interface using a simple 4-wire interface (including power).


Explore new microcontroller worlds with an ST-Link Programmer & Emulator / Debugging dongle.
This little USB stick contains a microcontroller with the code for ST's classic programmer/emulator for STM8 and STM32 bit processors.
Since STM's are so common, this tool will come in handy whenever you encounter them.
You can even get 5V and regulated 3.3V power!


Comes with one USB stick and a couple pieces of female-female jumpers. You may want to peruse our jumper selection if you need more or different sizes.


We wired it up to an ST32F205 and ran ST-Link, and worked great! You can even update the firmware on the dongle as necessary, it has a DFU bootloader.


Features
SWIM cable for connection to the application via an ERNI standard vertical connector (ref: 284697 or 214017) or horizontal connector (ref: 214012)
SWIM cable for connection to the application via a pin header or a 2.54 mm pitch connector
JTAG/serial wire debugging (SWD) specific features:
1.65 V to 3.6 V application voltage supported on the JTAG/SWD interface and 5 V tolerant inputs
JTAG cable for connection to a standard JTAG 20-pin pitch 2.54 mm connector
JTAG supported
SWD and serial wire viewer (SWV) communication supported
Direct firmware update feature supported (DFU)
Status LED which blinks during communication with the PC
Operating temperature 0 to 50 °C
1000 Vrms high isolation voltage (ST-LINK/V2-ISOL only)
